PVC Films L-bar Heat Sealer Shrink Packaging

Film Packing Shrink Tunnel Heat Wrapping Machine

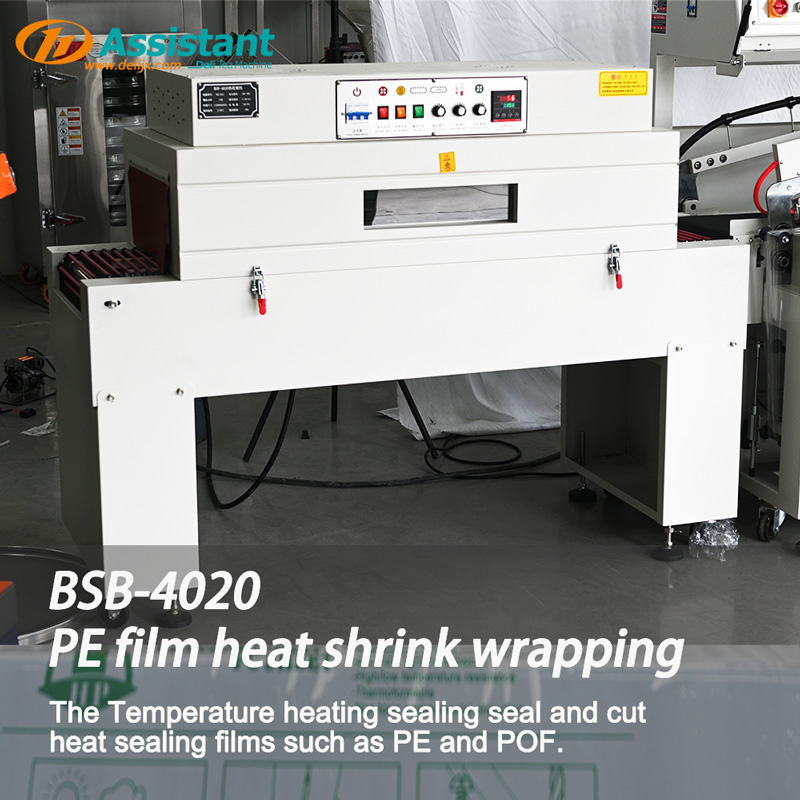

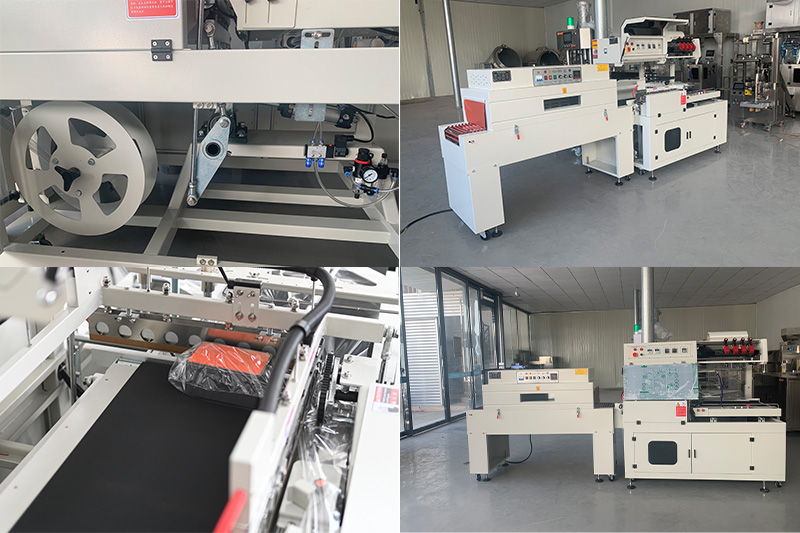

L-Type Sealing Cutting Machine and Heat Shrink Tunnel Packing Machine DL-450L&DL-BSB-4020

The fully automatic Heat-shrinkable sealing and cutting machine can be used for fully automatic online shrink packaging of products. It uses photoelectricity to automatically detect the product.

Model :
DL-450L
Sealing Type :
Heat sealing
Voltage :
220 V/50 Hz 60 Hz
Bag Materials :
PVE/POF
Packing Speed :
15-30 pcs/min
Weight :
280 KG
Power source :
Electric+pneumatic
Power :
3 KW
Dimension :
163*90*147 cm

Inquiry now

product introduction

***DESCRIPTION***

The 2023 New Film Shrink Wrapping Machine, a fully automatic L Bar Shape Sealer specifically designed for the tea box industry. This advanced machine efficiently seals and shrink wraps tea boxes with precision and ease, ensuring a professional and secure packaging solution. Ideal for enhancing the packaging process in the tea industry, this innovative machine offers reliability, speed, and quality results, making it a valuable asset for businesses looking to streamline their packaging operations.

***ADVANTAGE***

1.The fully automatic sealing and cutting machine is designed for online shrink packaging of products, utilizing photoelectricity for automatic product detection.

2.It offers two modes of automatic or manual feeding and can fold the film in half while sealing the other three sides.

3.The constant temperature heating sealing and cutting system is suitable for sealing and cutting various industrial standard heat sealing films like PE and POF.

4.Sealing is strong and aesthetically pleasing, particularly ideal for POF sealing and cutting. Simple adjustments through the handwheel allow for easy product size changes without part replacements, reducing product replacement time and enhancing operational ease.

5.The speed-adjustable front-end feeding system and rear-end storage working platform enable high-speed, unmanned automatic operation of the entire machine.

***SPECIFICATION***

Model	DL-450L	Model	DL-BSB-4020
Voltage	220 V/ 50-60 Hz	Voltage	220-380 V/ 50-60 Hz
Weight	280 KG	Weight	200 KG
Dimension	16309001470 mm	Dimension	19607201350 mm
Power	3 KW	Power	15 KW
Packing Speed	15-30 bags/min	Transmission speed	0-10 m/min
Gas source	0.4-0.6 Mpa	temperature range	0-300℃
Conveying load capacity	20 KG	Conveying load capacity	20 KG max
Maximum packaging size H	<150 mm	-	-
Maximum packaging size L+H(H<150 mm)	<500 mm	-	-
Maximum packaging size W+H(H<150 mm)	<400 mm	-	-
Sealing knife size L*W(mm)	550*450	-	-
Shrink Film	POF/PE/PVC	Shrink Film	POF/PVC/PP/PE
